Functional Description

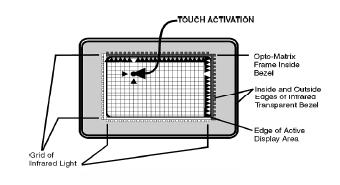

Scanning infrared (IR) technology relies on the interruption of an IR light grid in front of the display screen. The touch frame or opto-matrix frame contains a row of IR-light emitting diodes (LEDs) and photo transistors, each mounted on two opposite sides to create a grid of invisible infrared light. The frame assembly is comprised of printed wiring boards on which the optoelectronics are mounted and is concealed behind an IR-transparent bezel. The bezel shields the opto-electronics from the operating environment while allowing the IR beams to pass through.
The IR controller sequentially pulses the LEDs to create a grid of IR light beams. When a stylus, such as a finger, enters the grid, it obstructs the beams. One or more photo transistors detect the absence of light and transmit a signal that identifies the x and y coordinates. |
Comparison of the Touch Technologies
Ask us for a comparison with other touch technologies. Strenght, weakness, available sizes.
Or simply describe us your application and we find the right technology for you. |
|
